Changing application stack size

To change the application stack size, perform the following steps:

1. From the Simulink model window for your application model, select the Simulation menu, then click Model Configuration Parameters...

   • On earlier versions of Matlab, this will be Simulation -> Configuration Parameters...

2. Under the Code Generation tab on the left, select OpenECU code generation...

   • On earlier versions of Matlab, this will be under the Real-Time Workshop tab on the left

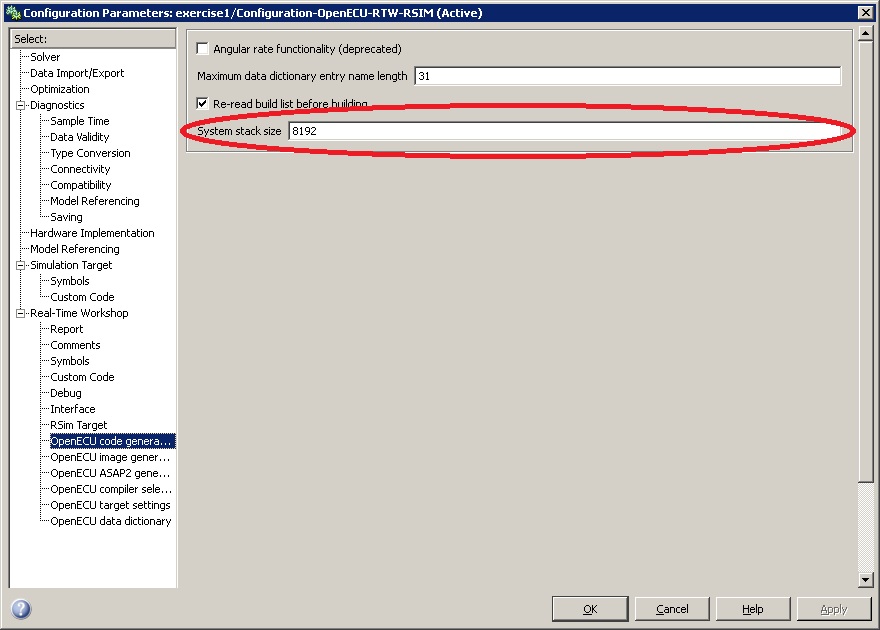

3. Change the stack size by entering a new number in the System stack size edit box, as shown below in the red circle.
